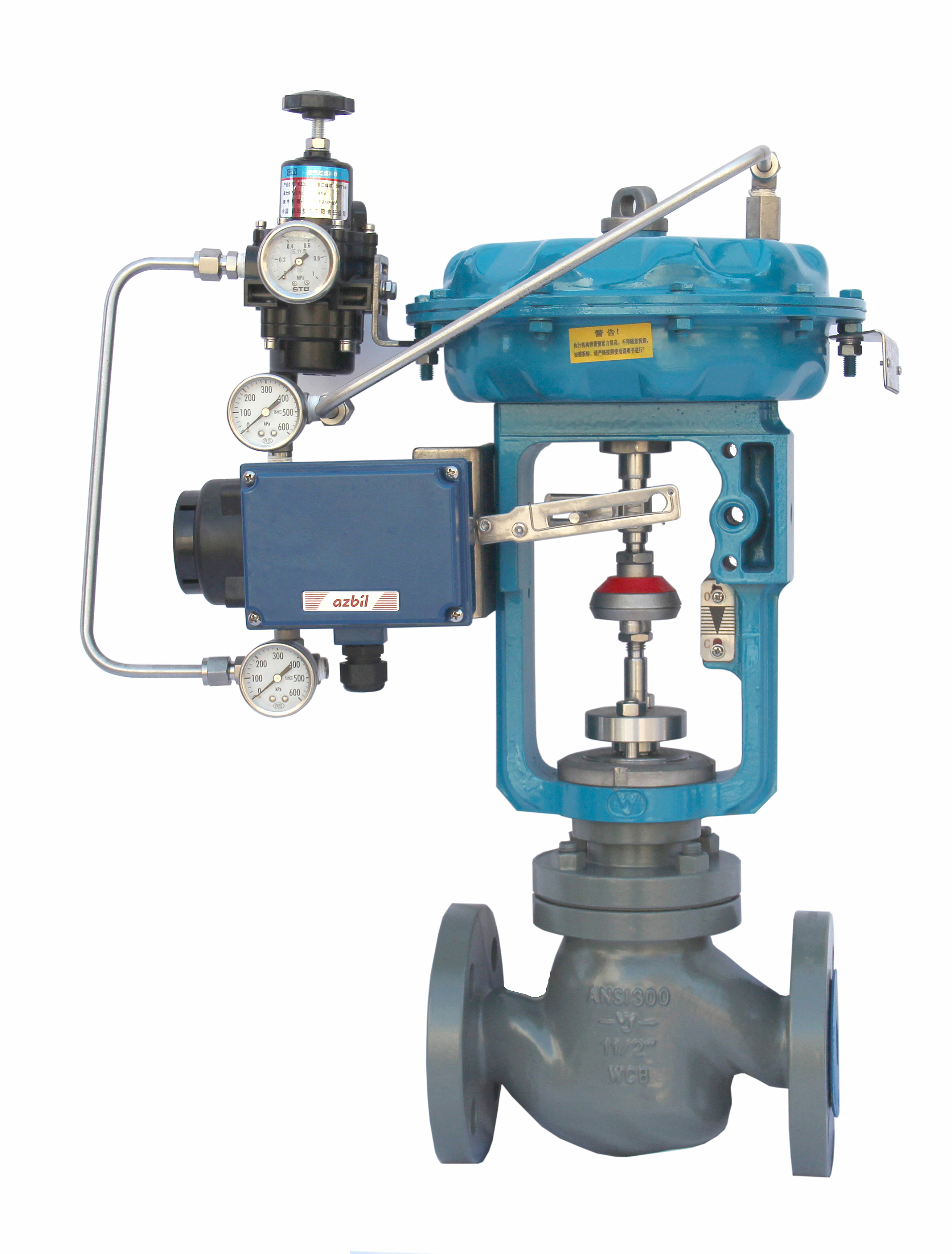

Type: Globe, Unbalanced Plug
Body Size: 1/2"-6"; (DN15-DN150)
Plug Characteristics: Contoured Plug-Equal Percentage, Linear, Quick-Opening
Pressure Classes: ASME Class 150-300
Body Connections: Flanged (RF, RTJ), Welded Ends SW up to 2" (DN50), BW 2-1/2" & up (DN65) and larger
Packing: PTFE V-Ring, Flexible Graphite
Gasket: Graphite; Reinforced Graphite

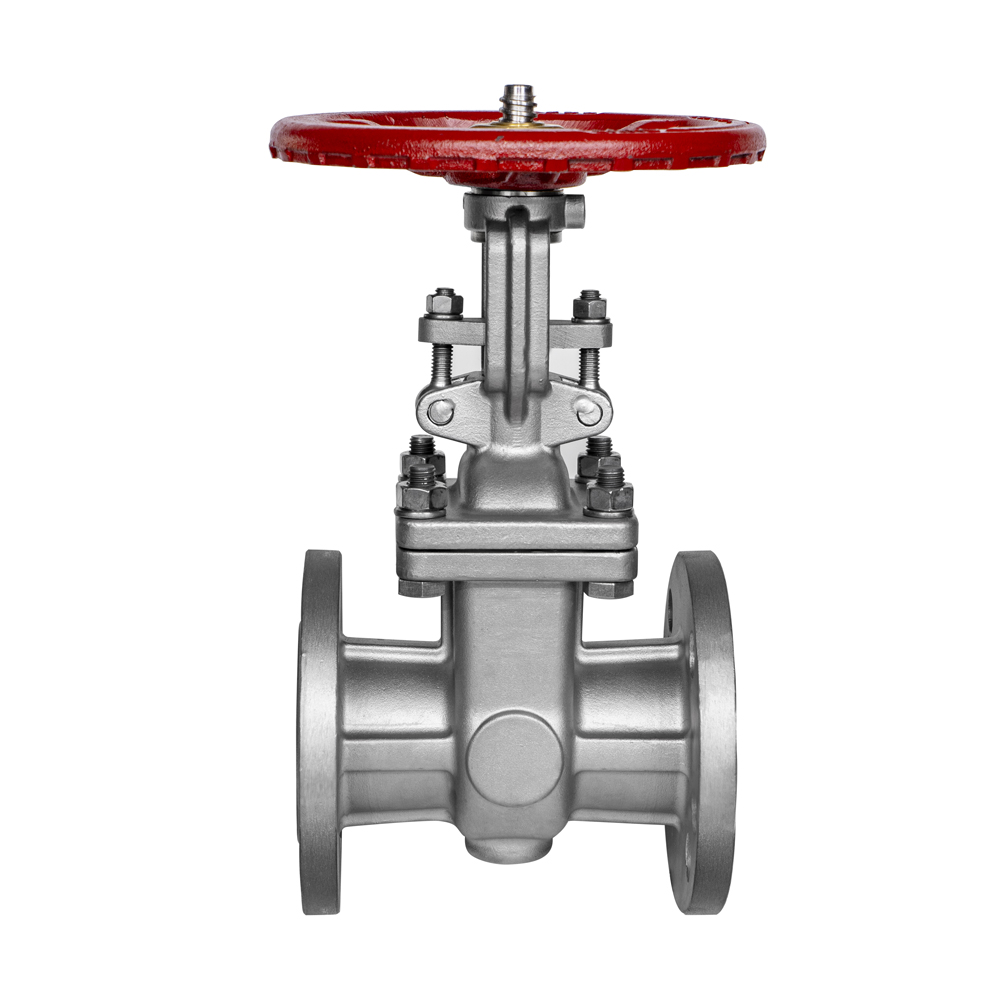

Known as Carbon Steel, WCB or SS Gate Valve.
- Sizes available: 1" ~ 12"
- Pressure: Class 150, PN16
- OS & Yoke, Rising Stem, Wedge type, Flanged End.
- Standard Graphite Packing.
- Other gasket material can be made available.
- Design and Manufacture according to API 600 or API 602.
- Face-to-Face dimensions according to ASME B16.10 - 2009.
- End Flange Dimension according to ASME B16.5 - 2009.
- Inspection and Test
